Architecture

Praetor has two layers: the agent runtime (deliberation, topologies, quality gates) and the Architecture V2 governed execution plane (kernel, effect broker, worker plane). This page is a map; the binding decisions live in the repository's ADRs under docs/architecture/.

Deliberation

Every task goes through classification, complexity estimation, and topology selection before any agent runs.

Task classification — six types: FACTUAL, REASONING, CREATIVE, RESEARCH, CODING, ANALYSIS.

Complexity estimation — a score used to size the topology. A one-line task uses one agent; a cross-repository audit can fan out to many.

Topology selection — five canonical topologies:

Topology	Shape
SINGLE	One agent handles everything
CHAIN	Sequential chain of agents (prompt chaining)
DISPATCH	Parallel agents, then aggregation
ORCHESTRATOR	Orchestrator delegates to workers
REVIEW	Generator + evaluator iterative loop

Legacy names (SEQUENTIAL, HANDOFF, PARALLEL, HIERARCHICAL, HYBRID, DEBATE, ENSEMBLE, EVALUATOR_OPTIMIZER, CONSENSUS) are still accepted and normalized to a canonical parent. The CLI warns once per process per legacy name.

Execution pipeline

Deliberation → Topology router → Agents (LLM → tool → verify)
             → Synthesis → Quality gates → Result

Agent events, tool calls, and gate decisions stream to your terminal or an SSE endpoint as they happen.

Quality gates

Five configured gates can run before a result is returned:

Gate	Checks
HALLUCINATION_CHECK	LLM-as-judge detection of fabricated facts
CONSISTENCY	Cross-agent agreement, no contradictions
COMPLETENESS	All required dimensions covered
ACCURACY	Factual correctness against source material
SAFETY	Content scanning and injection detection

These gates are checks, not guarantees. If a gate fails, the system retries or reports the failure with context.

Resilience

Capability	Implementation
Circuit breakers	Three-state (CLOSED / OPEN / HALF-OPEN), per-provider error-rate tracking
Dead letter queue	Append-only NDJSON, 7 categories, replay support
Saga compensation	Registered compensation steps; external rollback is not guaranteed
Checkpointing	SQLite + WAL, crash-safe recovery
Semantic caching	SHA-256 exact match plus cosine-similarity deduplication

DLQ categories: llm, tool, execution, verification, circuit_breaker, compensation, semantic_drift.

Architecture V2

V2 splits durable authority from execution so that external writes are governed in one place.

System Architecture & Trust Boundaries

Praetor establishes a strict three-plane isolation model that decouples untrusted agent reasoning from external mutations:

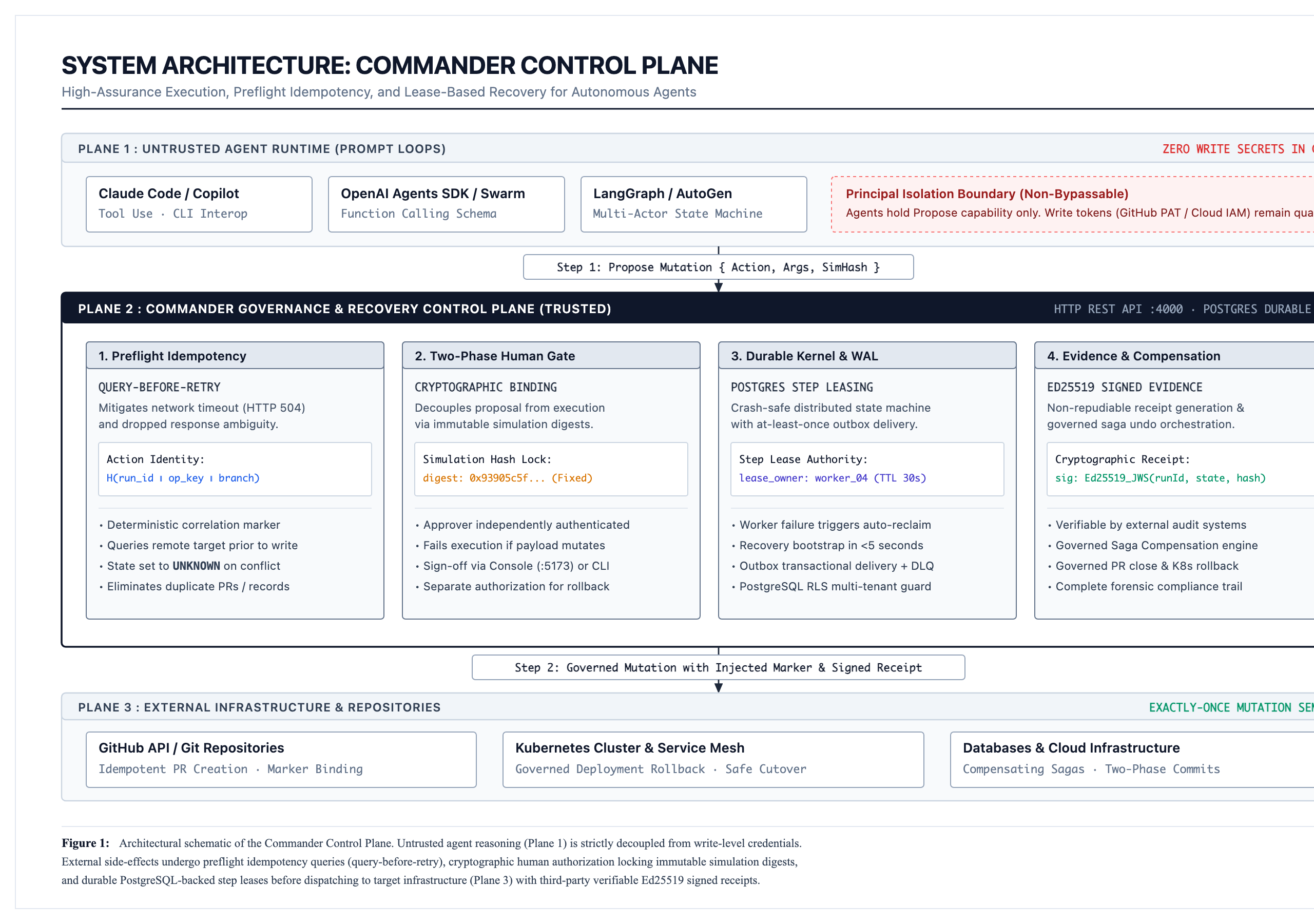

Figure 1: Formal three-plane control architecture. Untrusted reasoning processes are isolated from external write credentials. All consequential mutations require preflight idempotency verification, Ed25519-signed human authorization, and durable WAL step leases before execution.

Package	Responsibility
@praetor/contracts	Versioned shared types, error codes, state machine, event envelope, OpenAPI V1. Pure — no runtime imports
@praetor/kernel	Sole authority for durable run/step lifecycle: leases, idempotency, outbox, recovery, migrations
@praetor/effect-broker	The only sanctioned path for external writes. Two-phase admit() → executeAdmitted(), Ed25519 capability tokens, policy decisions, quotas, fencing, signed evidence
@praetor/action-adapters	External-mutation adapters (GitHub pull request, ServiceNow incident, Kubernetes rollback) with conformance test suite
@praetor/worker-plane	The only place a leased step executes. Fail-closed bootstrap
@praetor/adapter-ops	Compensation and reconciliation drain daemon
@praetor/postgres-runtime	Hardened pg.Pool factory: sslmode=verify-full, CA file, SPKI pinning
@praetor/shadow-plane	Read-only historical policy evaluation for Shadow pilots
@praetor/core	Agent runtime: orchestration, tools, providers, memory, security, CLI
@praetor/sdk, praetor-ai	TypeScript and Python clients
@praetor/mcp-server	MCP stdio server exposing Action Gateway tools
@praetor/plugin-sdk	Plugin authoring surface

Governance flow

1. A run is submitted to the Gateway (POST /v1/runs) and persisted by the kernel.
2. Steps are leased by workers with capability-aware leasing.
3. Any step that needs an external write must go through the effect broker, which verifies a capability token, binds the request hash, evaluates policy and quotas, and records signed evidence.
4. Consequential actions require approval; approvals are bound to the returned digest and policy snapshot.
5. Mutations execute through dedicated action adapters (@praetor/action-adapters). If response transport is interrupted, the adapter queries external systems for existing outcomes before attempting retries, preventing duplicate mutations.
6. If a step fails after a partial write, compensation runs through adapter-ops and is reconciled.

Preflight Query-Before-Retry Protocol

When external writes encounter network drops (e.g. HTTP 504 Gateway Timeout or worker restarts), naive agent retries create duplicate mutations. Praetor executes a deterministic preflight query protocol:

Figure 2: Distributed preflight query-before-retry protocol. Comparing naive agent retry storms with Praetor's lease-driven exactly-once recovery across network timeouts and process crashes.

Two-Phase Cryptographic Human Gate & Evidence Lifecycle

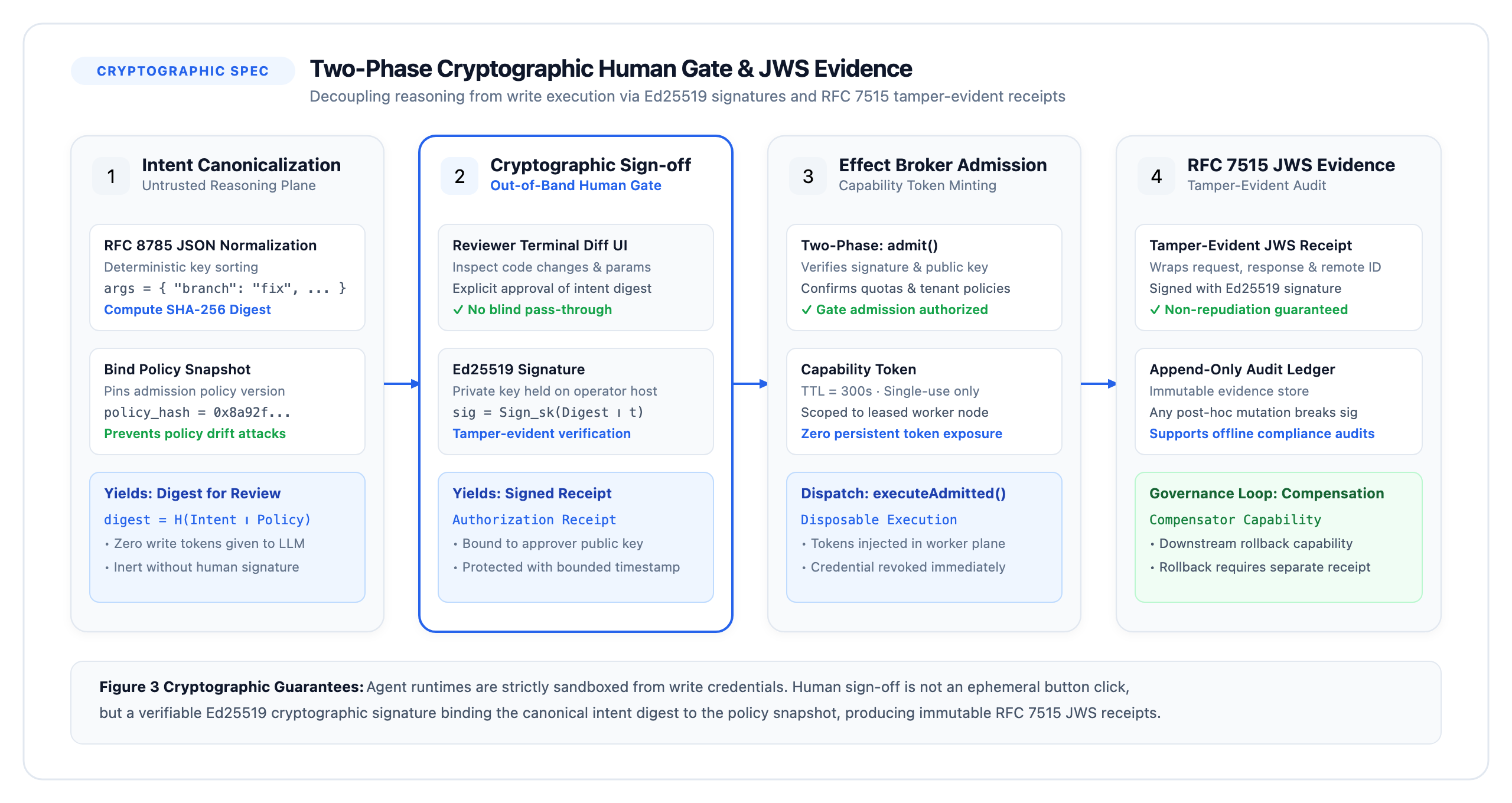

Figure 3: Cryptographic dataflow. The untrusted agent generates a canonical JSON proposal. Reviewers sign the computed intent digest using offline Ed25519 private keys. The effect broker mints an ephemeral capability token, executes through an isolated worker, and emits an immutable RFC 7515 JWS evidence receipt.

Storage and durability

Layer	Authority
API product stores	sqlite (local default), memory, or postgres
Kernel	PostgreSQL — runs, steps, events, outbox, leases
Local state	.commander_state/ (WAL at .commander_state/event-sourcing.wal)

In production the API fails closed if no durable store is configured. Local file-backed state is not a multi-replica authority.
